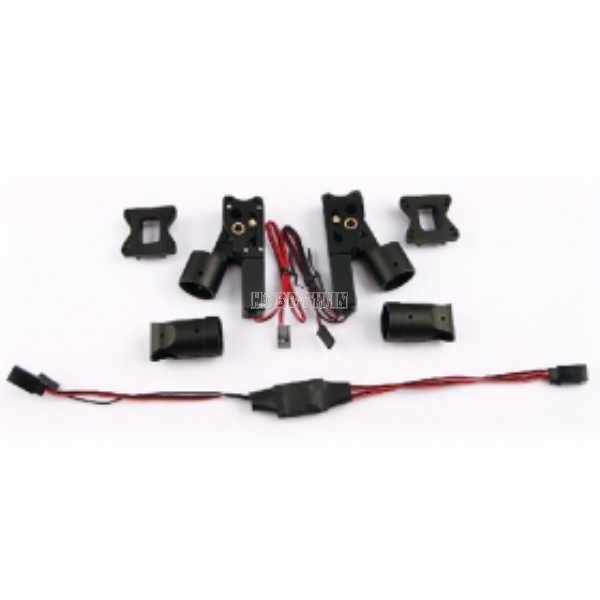

Full Metal Electric Retract Landing Gear
Item No.: ER4070
Electric Retract Landing Gear
Material & Processing: Aluminum CNC, Anodized surfaces
Work Mode: work by remote control, external control board with current protection
Torque Output: 10kg.cm
Unfold Speed: 5.2s/6.0V; 4.6s/7.0V; 4.2s/8.0V
Suitable For: 4~8 axis multirotor aircraft (flying weight <18kg)
Quadcopter /Hexacopter /Octocopter
This item come only one set (2pcs) metal electric retract unit & control unit.
Not contain carbon tube or anything else.
Input Voltage: DC 5~8.4V
Input current with balk work: ≤2.4A
Input current MAX: ≤4A
Input pulse range: 500~2500us
Dead zone of signal: 1199~1700us
Relationship between pulse and action: >1700us—Down, <1200us—Up
Overall Dimensions: L84.3*W19.5*H27.6mm
Machine Angle: 70 degree (+/-2)
Limit Angle: 70 degree (+/-2)
Unit Weight: 80g (+/-3)
Location Hole: 3.0mm
Tension (Pulling): 7kg
Q'TY: 2P (one set)
Total Weight: about 250g (1 set without carbon tube)
01. For RC model electrical equipment use.
02. Function control by remote control.
03. Installs done with the system without remote that can manual controls it
04. Special screw type structure design without mechanical jam concerns, which ensure safe & reliable operation.
05. Electronic memory location function, no reverse action with power connection.
